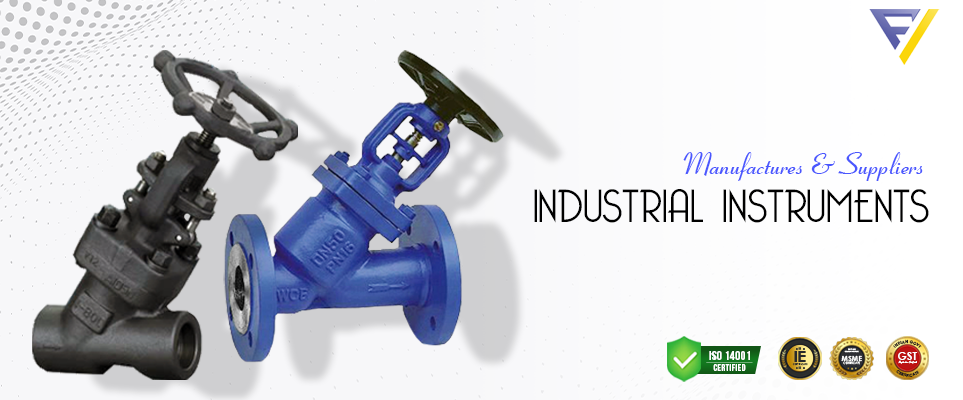

Y Pattern Globe Valve is a type of valve used in industrial applications. It is designed to control the flow of fluids (liquid or gas) by modulating the opening and closing of a Y-shaped passageway through which the fluid flows. The Y Pattern Globe Valve gets its name from its Y-shaped configuration, which allows for a more efficient flow path than other valve designs.
Y Pattern Globe Valve is often used in applications where a high degree of control over the flow of fluid is required, such as in food and beverage processing, pharmaceutical manufacturing, and chemical processing. Y Pattern Globe Valve can be manual or automated and available in various materials depending on the application.
Y Pattern Globe Valve Specifications
| Size | : | 1/2″-24″(15mm-600mm) |
| Pressure Ratings | : | #150 to #2500 PN 2.5 to PN420 |
| Shutoff Rating | : | Zero Leakage |
| Body Style | : | Double Flanged, Butt Weld |
| Flange Drilling | : | ASME B16.5, EN 1092-1, GOST 33259, ASME B16.47 |
| Body Materials | : | Carbon Steel, Stainless Steel, Nickel Aluminum Bronze, Alloy Steel, etc |
| Stem Material | : | Staniless Steel |
| Seat Materials | : | Trim Material is Metal to Metal acc to API 600 |
| Disc Materials | : | Carbon Steel, Stainless Steel, Nickel Aluminum Bronze, Alloy Steel, etc |
| Design Standard | : | ASME B16.34, BS1873, DIN3356, API 623 |
| Testing Standard | : | API 598, EN12266-1, ISO 5208 |
| Face to Face | : | ASME B16.10, EN558-1 |
| Operation | : | Wench, Gear, Electric, Pneumatic, etc |
Cast Steel Gate Valve Applications
- Oil and Gas Pipeline
- Offshore Platforms
- Onshore Terminals
- LNG Storage & Transportation
- Steam Distribution Systems
- Power Generation
- Geothermal Steam
- Sugar & Ethanol
- Pulp & Paper Liquor
- Refining
- Chemical Processing
- Water & Wastewater
- Air Separation
- Cryogenic Services
